Application
Diesel fuel only

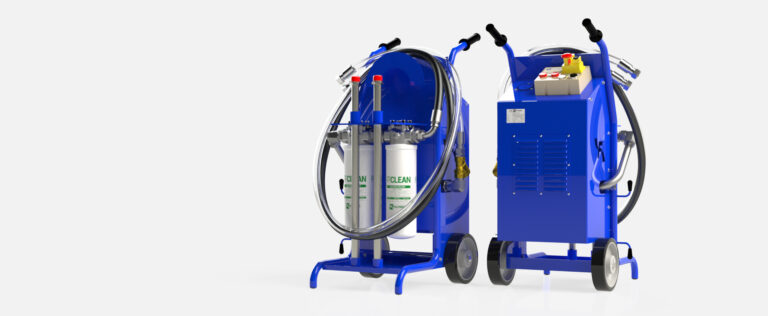

Filtrec FUF050 Series – Diesel Filtration Unit
Portable unit for diesel transfer and filtration with a flow rate of 50 l/min, featuring two filters for solid impurities and water absorption.
Technical specifications
The Filtrec FUF050 is designed exclusively for diesel fuel. The two-stage filtration combines a solid particle retention element with a water-absorbing element. The unit uses a vane pump and two A522 series spin-on cartridges.
The control panel includes safety features and filter clogging indication. Before use, the correct cartridges must be installed, and the enclosed operating manual must be consulted.
Flow Rate
50 l/min
Operating Temperature
−10 to +50 °C
Power Supply
230 V AC, single-phase, 50–60 Hz
Power Consumption
1.6 kW
Pump
Vane pump; 6 bar pressure relief valve
Filtration
2 × A522 /AB2: solid particles and water absorption
Filter Media
G01/G03/G06/G10/G25/G40; water absorbing GW40/AW40
Sealing
FKM
Pump Protection
Y-filter 500 µm
Frame
Painted steel
Dimensions (L × W × H)
490 × 645 × 1,006 mm
Dry Weight
62 kg
