Flow rate
15 l/min
Filtrec FU0020/0030 Series – Portable Filtration Unit
Portable units for pumping and off-line filtration of hydraulic oil with a flow rate of 15 l/min.
Technical specifications

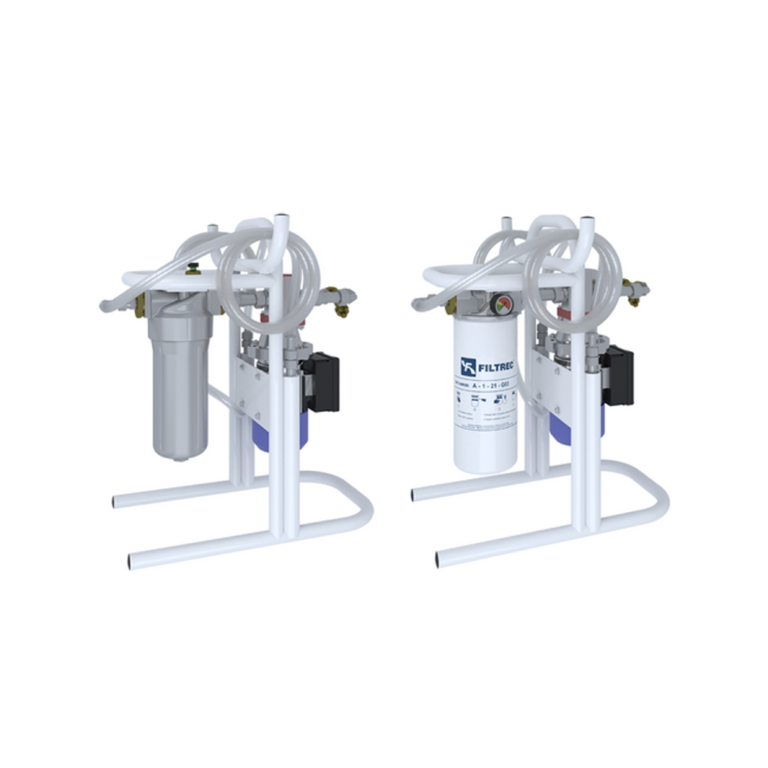

Filtrec FU0020/0030 is a compact filtration unit with a single-phase motor. FU0020 uses an A12 series spin-on element; FU0030 uses a DMD0030 element in an aluminium housing.
Depending on the element, it can capture solid particles or also absorb water. Use the unit only with a suitable element installed and in accordance with the manufacturer’s instructions.
Power supply
230 V, 50 Hz, single-phase
Motor
0.18 kW; 4-pole
Frame
painted carbon steel
Filter housing
aluminium
Pump protection
Y-filter 500 µm
Dimensions (L × W × H)
480 × 520 × 620 mm
Weight
FU0020 approx. 23.5 kg; FU0030 approx. 25 kg
Operating temperature
0 to +80 °C
Viscosity
30–150 cSt
Elements
FU0020: A12; FU0030: DMD0030
Seal
NBR
Compatible fluids
HH, HL, HM, HV according to ISO 2943
