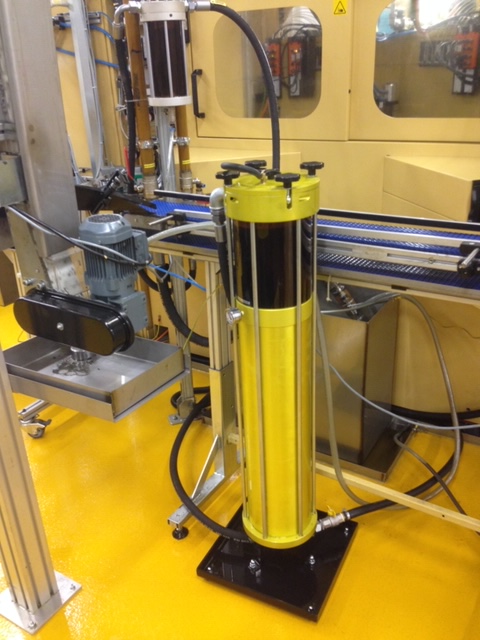

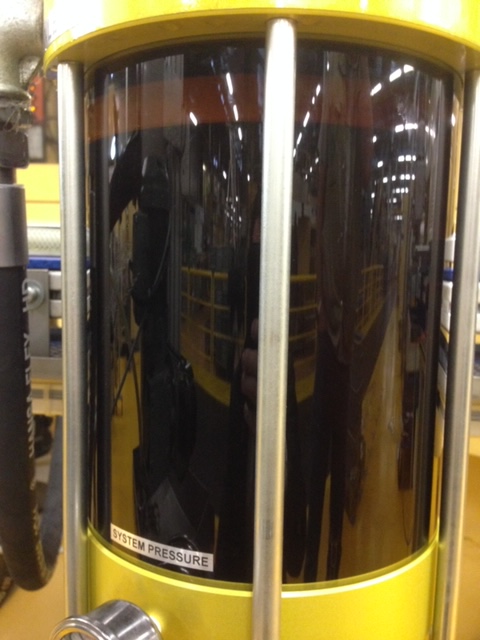

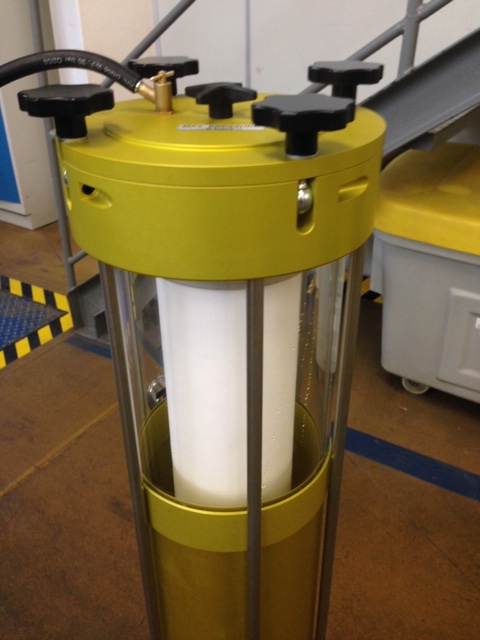

VTPMIL 1000FTS
Candle filter for process fluids The VTPMIL 1000FTS is a candle filter designed for the filtration of process fluids with a viscosity of up to 32 cSt. The device is designed for use with filter candles and ensures reliable removal of mechanical impurities from industrial fluids. The filter achieves a maximum flow rate of 150 L/min and is available in 1 µm, 5 µm, and 10 µm micron ratings. During operation, a filter cake forms, which increases the efficiency of fine particle capture and thus the overall filtration efficiency.
Technical specifications
Applications:
– cutting oils
– cutting emulsions
– industrial fluids
Connection:
– inlet/outlet: 1” BSPP / G
– drain valve: 3/4” BSPP / G
– air vent valve: 1/4” BSPP / G
– pressure gauge: 1/8” BSPP / G
Maximum flow rate: 150 l/min
Maximum operating pressure: 8 bar
Viscosity: ≤ 32 cSt
Maximum operating temperature: 80 °C
Weight: 40.5 kg
Dimensions and weight:
– weight: 40.5 kg
– base dimensions: 400 x 400 mm
– height: 1,250 mm
– filter housing diameter: 245 mm
