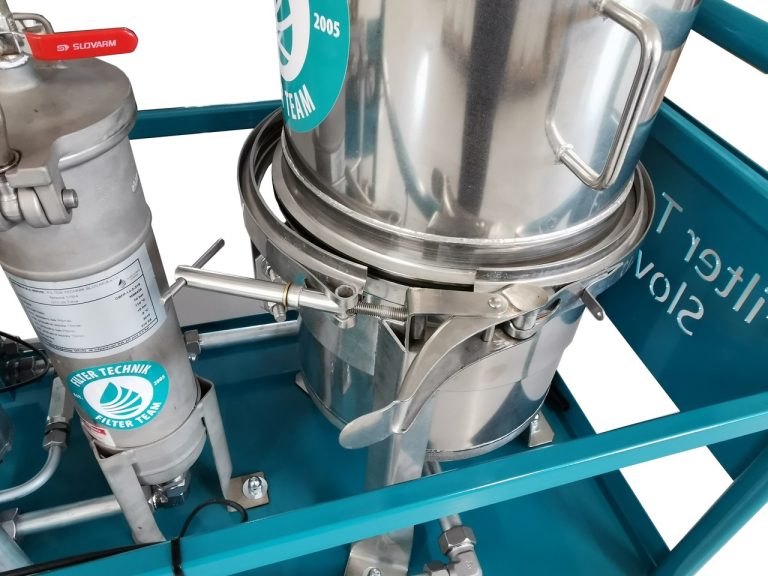

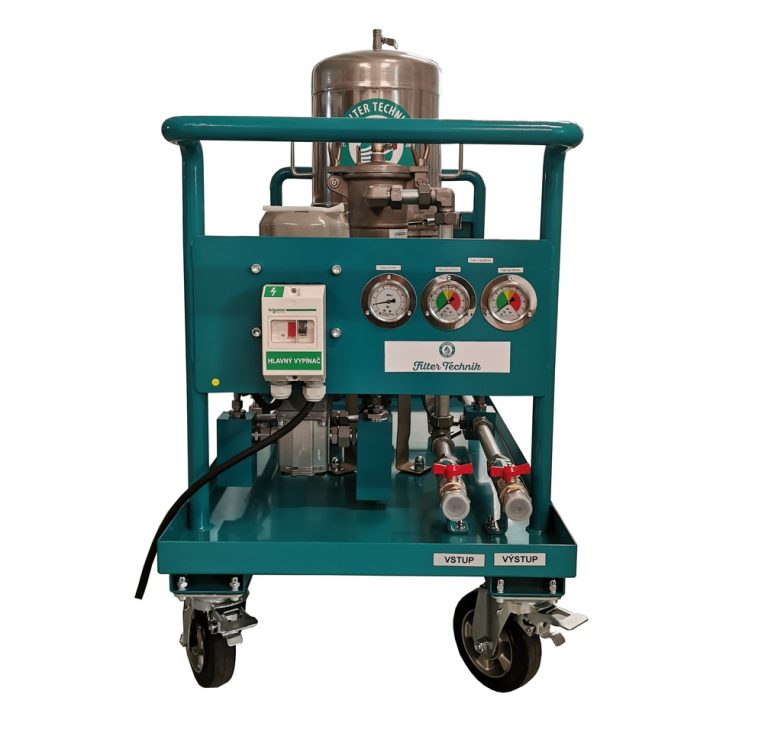

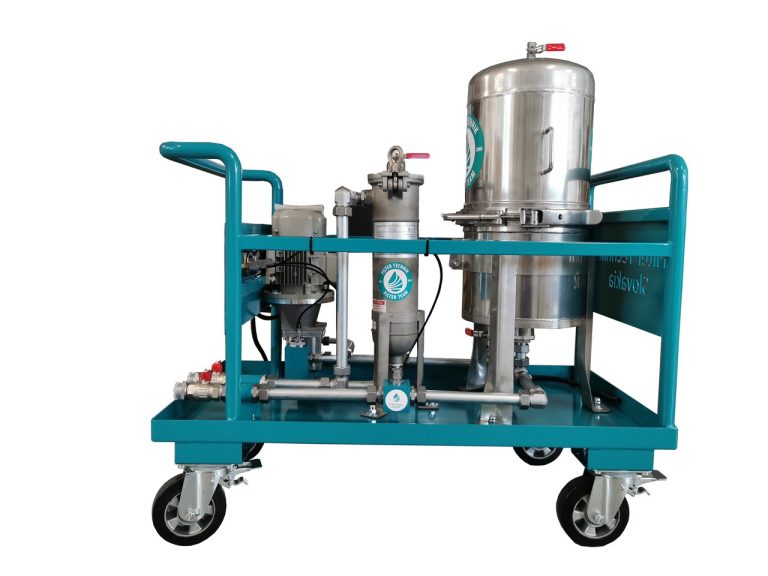

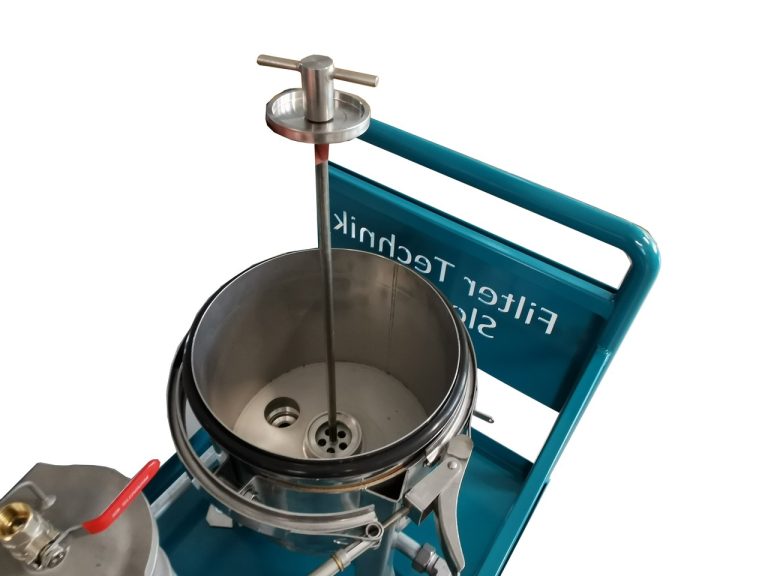

FTS-BFU-705-Supradisk
Mobile filtration unit designed for supplementary bypass filtration of cutting, hydraulic, turbine, and lubricating oils.
Technical specifications
Number of filter units: 2 pcs (suction, primary)
Filtration fineness:
– primary filter: 1 – 20 µm absolute filtration (efficiency 99.8%)
Filtration fineness:
– suction filter: 100 µm (option to insert a magnetic separator)
Flow rate: 30 l/min (at 40 °C and 32 mm²/s)
Max. operating pressure: 5 bar
Max. differential pressure: 2.4 bar
Inlet fluid viscosity: 2 – 220 mm²/s
Max. fluid temperature: 60 °C
Max. tank volume: 10,000 l
