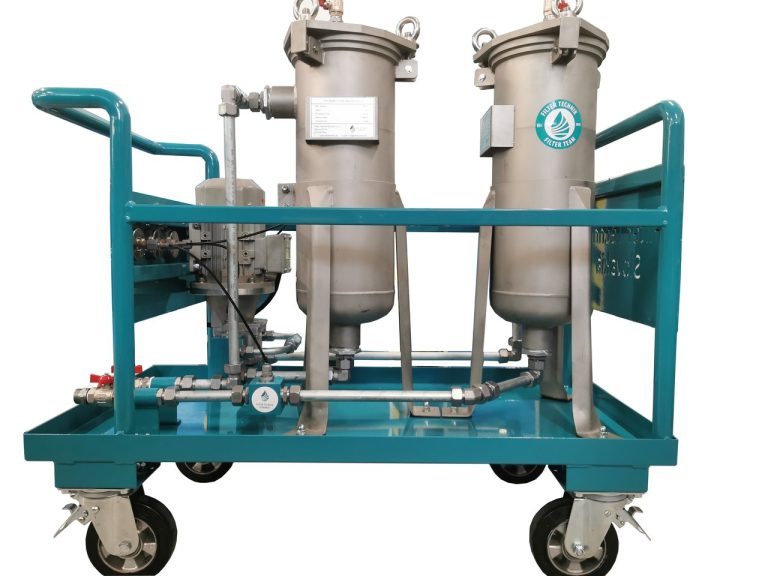

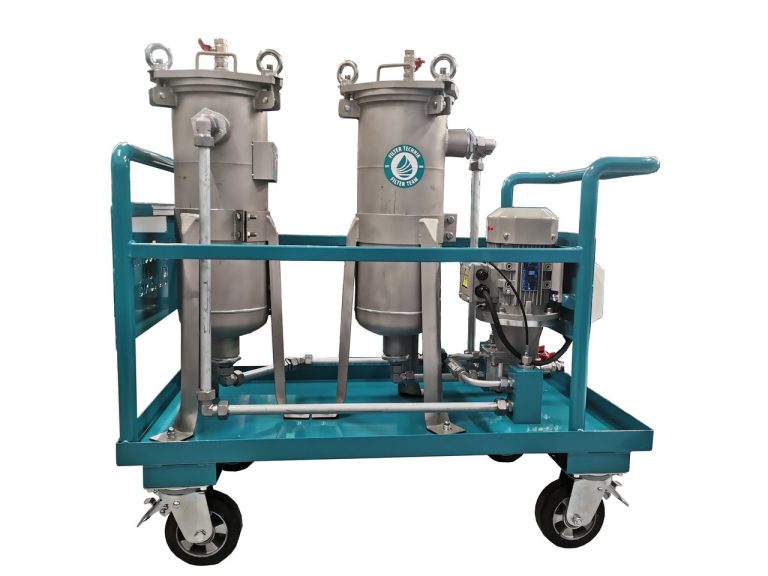

FTS-BFU-505
Filtration unit with two bag filters and a flow rate of 12 l/min for tanks up to 7,000 l.
Technical specifications
Number of filter vessels: 2 pcs
Filter element type: bag filter – size 1
Inlet bag filter: 50 – 200 µm
Outlet bag filter: 1 – 100 µm
Flow rate: 12 l/min
Max. operating pressure: 6 bar
Inlet fluid viscosity: 2 – 220 mm²/s
Max. fluid temperature: 80 °C
Max. tank volume: 7,000 l
