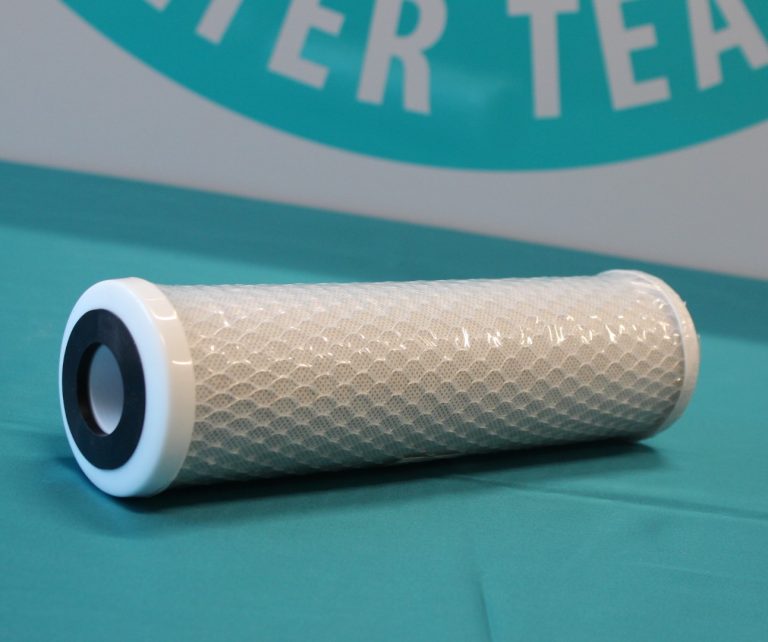

Carbon candle filters
Carbon candle filters are made of extruded activated carbon and are designed to reduce organic content, remove unwanted odors and tastes, and reduce chlorine and its compounds from liquids. Thanks to the high adsorption capacity of activated carbon, they are particularly suitable for water treatment and filtration of process liquids.
Technical specifications
Features
– extruded activated carbon with high adsorption efficiency
– minimal use of binders
– low flow resistance
– high contaminant holding capacity
– minimal release of fine carbon particles during commissioning
– large active filtration area
– double open end (DOE) design
– prefiltration and protective layer made of polypropylene nonwoven fabric
Technical parameters
Material: extruded activated carbon
CTC adsorption: 60%
Seal: NBR
Lengths:
– 10″ (254 mm)
– 20″ (508 mm)
– 30″ (762 mm)
– 40″ (1,016 mm)
Inner diameter: 30 mm
Outer diameter: 68 mm
Filtration rating: 5 to 25 μm
Maximum operating temperature: 65 °C
Maximum differential pressure: 1 to 2.5 bar
