Belt filters in practice

• A – liquid is fed onto the filter medium and flows through it into the collection tank under gravity, while contaminants remain on the belt filter

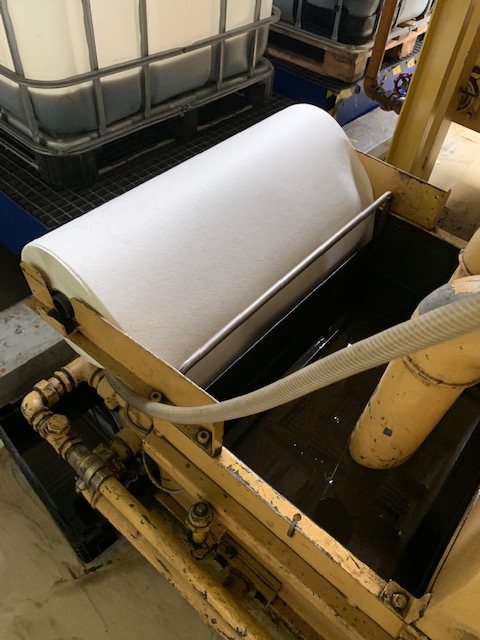

• B – roll of clean belt filter medium
• C – float that monitors the liquid level and automatically advances the filter medium
• D – collection container for sludge and used filter medium

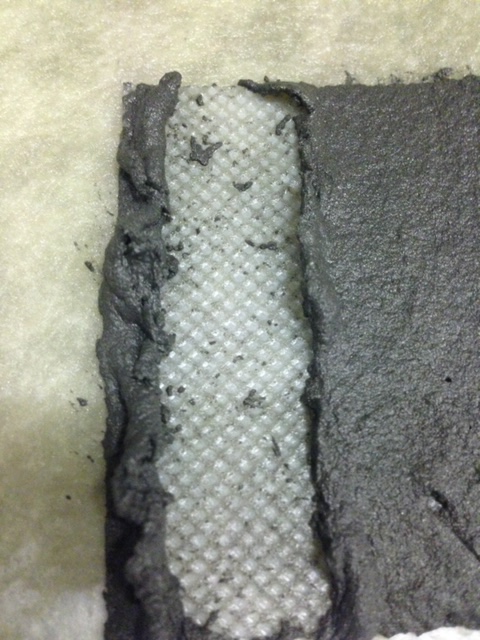

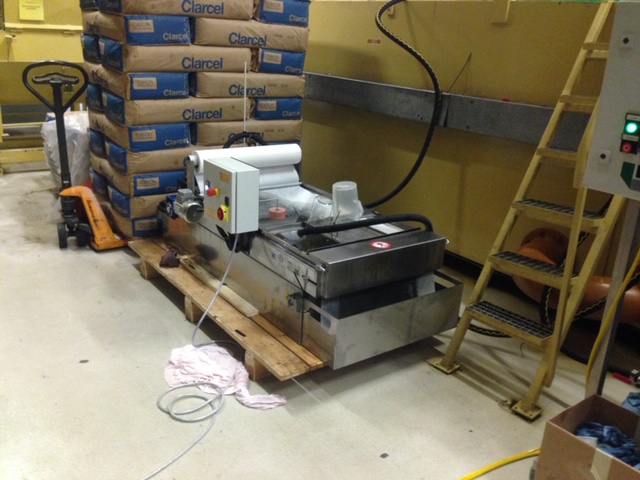

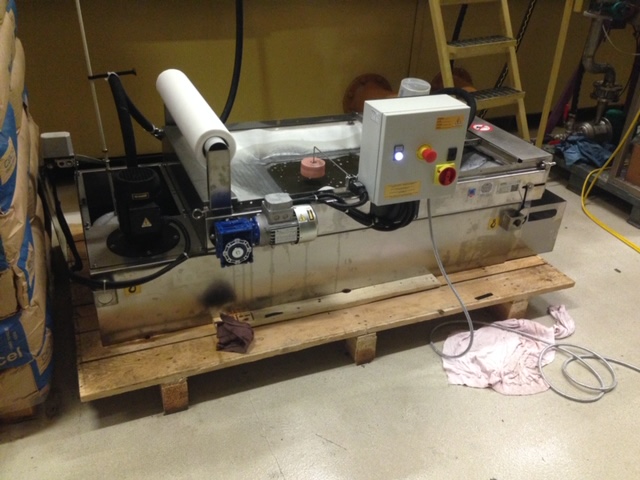

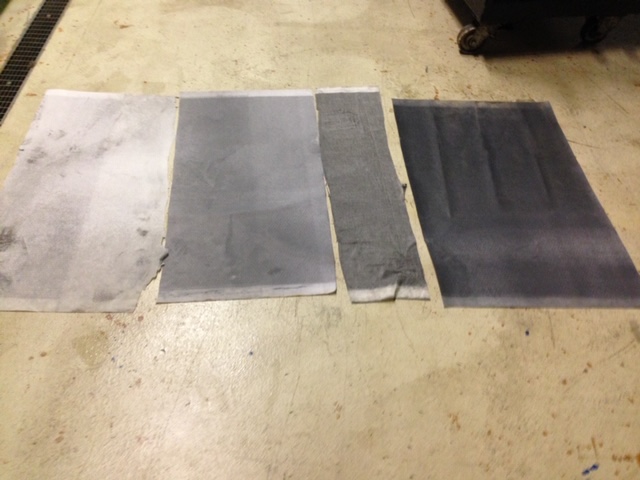

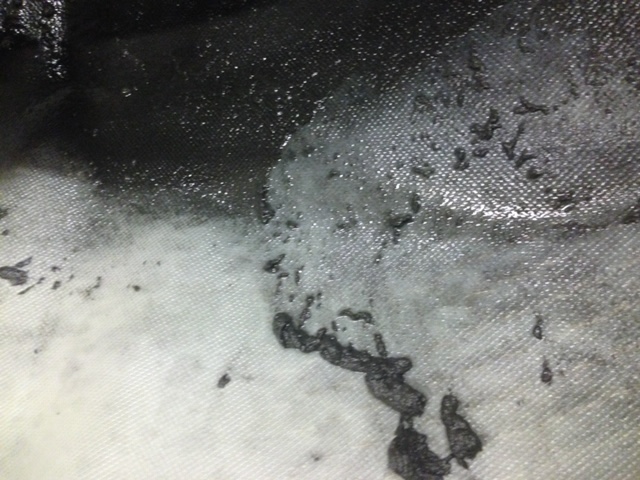

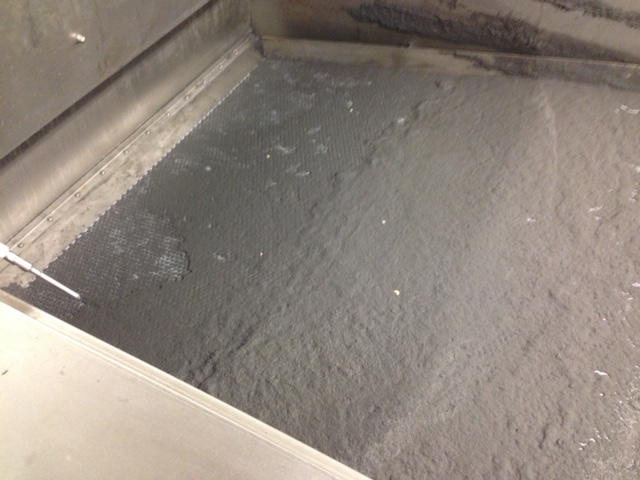

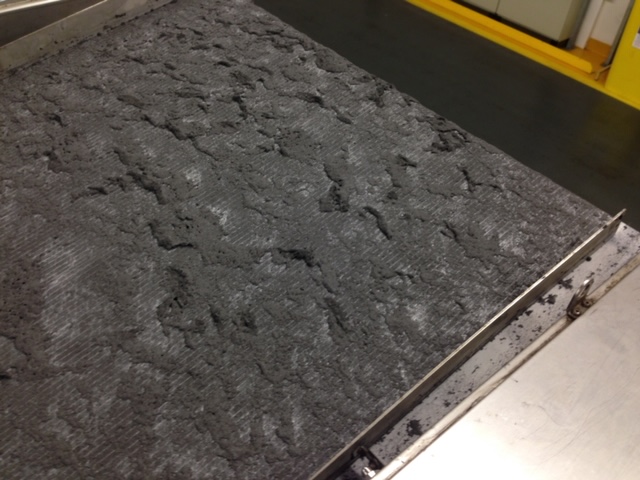

Photos of belt filters in use
